Control a Raspberry Pi GPIO with Python

28 March 2021

Updated: 03 September 2023

Circuit Diagram

This script will make use of the GPIO Pins to flicker an LED

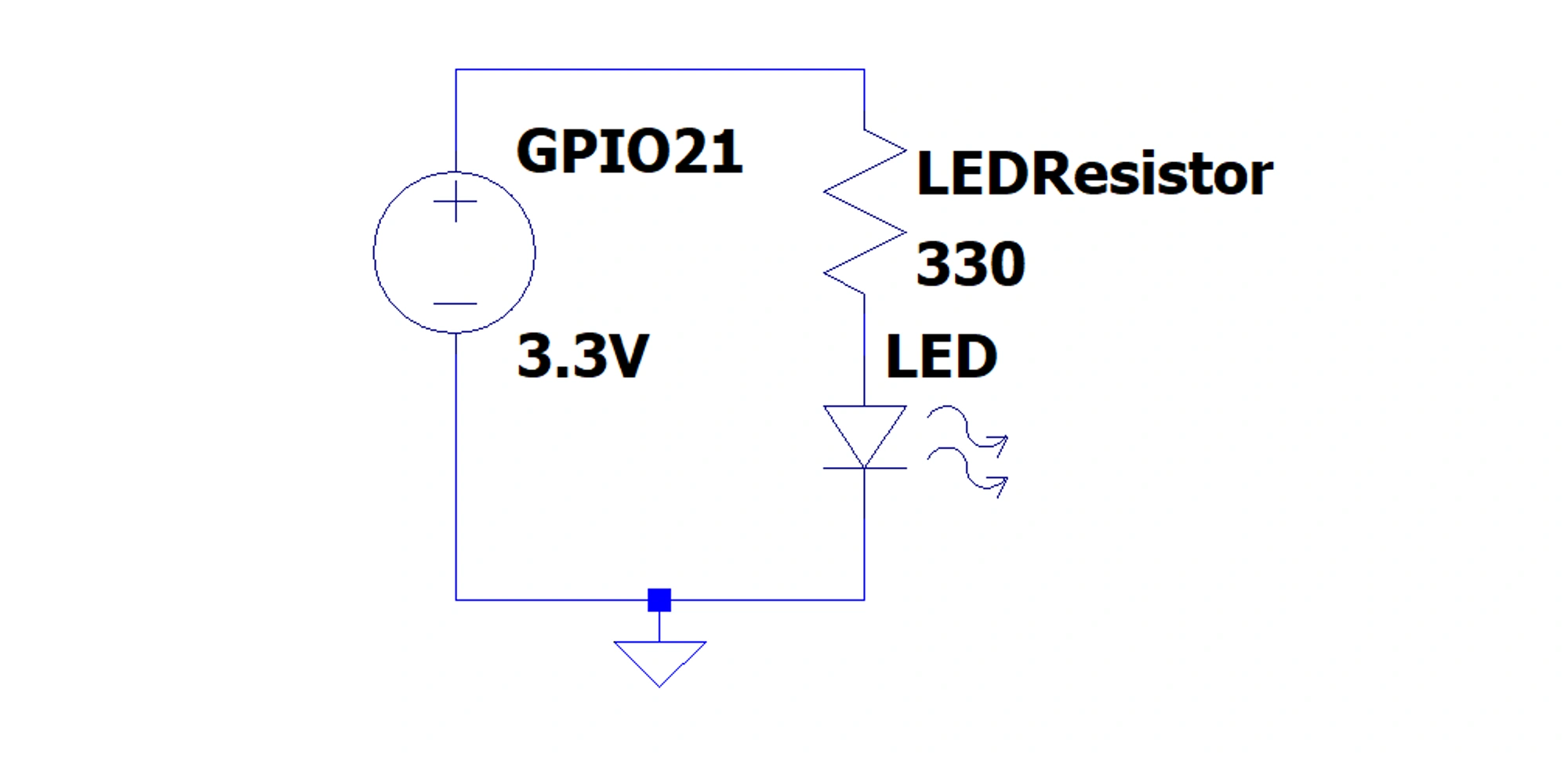

The circuit diagram is below:

Circuit diagram

I’ve used a $330\Omega$ resistor for the resistor connected in series $R_LED$ , however the resistance for a given LED can be calculated with this equation (From Circuit Specialists):

R_{LED} = \frac{V_{source} - V_{LED}}{I_{LED}}

It’s important to connect the LED in the correct direction on the circuit

Code

Below is a simple python script which will handle turning the GPIO pins on and off using the RPi.GPIO library

1
import RPi.GPIO as GPIO
2
import time
3

4
pin = 21
5
dur = 1
6

7
GPIO.setmode(GPIO.BCM)
8
GPIO.setwarnings(False)
9
GPIO.setup(pin, GPIO.OUT)
10

11
while True:
12
  GPIO.output(pin, GPIO.HIGH)
13
  print "LED ON"
14
  time.sleep(dur)
15

16
  GPIO.output(pin, GPIO.LOW)
17
  print "LED OFF"
18
  time.sleep(dur)
